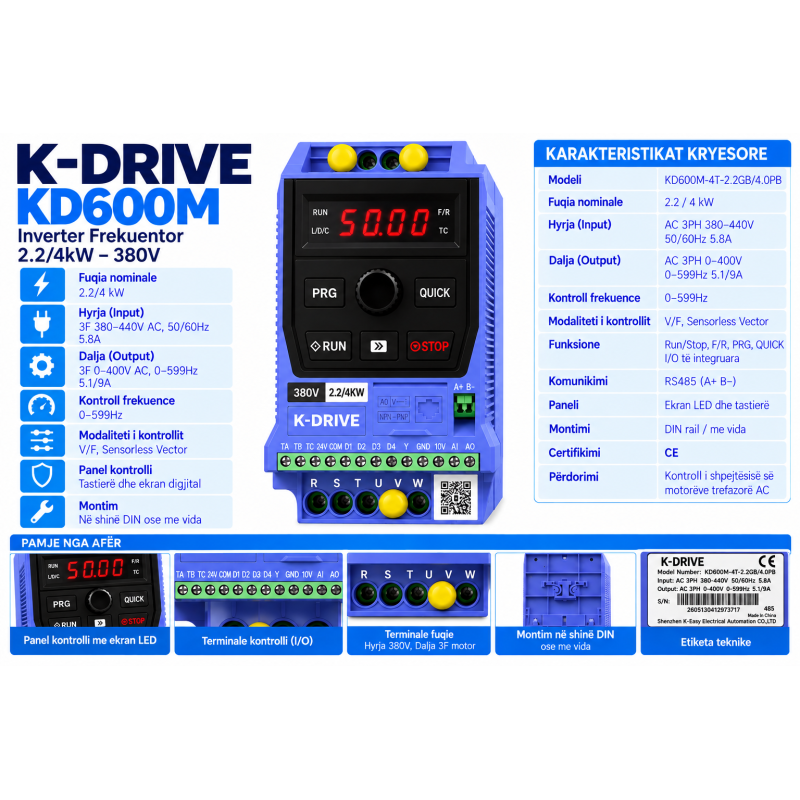

Inverter Frekuentor KD600M – 2.2/4kW, 380V

Product Features

1.    Compact design suitable for limited installation spaces such as packaging machines, labeling machines, conveyors, etc.

2.    Patented rubber keypad design with enlarged keys for easier operation, optimized for overseas users.

3.    External keyboard for flexible panel mounting.

4.    PC software with one-key configuration to save debugging and setup time.

5.    Built-in EMC C3 filter providing stronger resistance to electromagnetic interference.

6.    Independent air duct design for improved heat dissipation and easier maintenance.

7.    Programmable DI/DO/AI and RS485 Modbus RTU & ASCII communication for easy device integration.

8.    Integrated PID function.

9.    Integrated multi-speed function.

10.  Supports Fire Override Mode for emergency operation.

Technical Specifications

Input Voltage

• 208–240V single-phase & three-phase

• 380–480V three-phase

Output Frequency

• 0–600Hz

Control Technology

• V/F, SVC, Torque Control

Starting Torque

• 0.5Hz 150% (V/F)

• 0.25Hz 180% (SVC)

Speed Accuracy

• ±0.5% (V/F)

• ±0.2% (SVC)

Torque Response

• <10ms (SVC)

Overload Capacity

• 150% rated current for 60s

• 180% for 10s

• 200% for 1s

Built-in Functions

• Simple PLC with up to 16-step speed control

• 5 digital inputs (NPN & PNP supported)

• 2 analog inputs, 2 analog outputs

Communication

• MODBUS RS485
