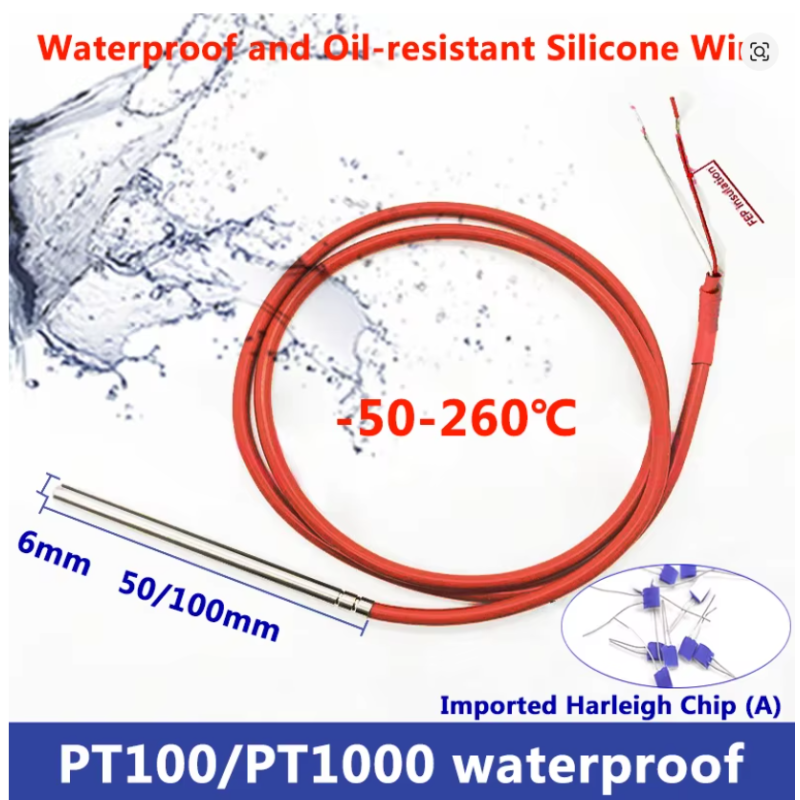

PT1000 RTD Temperature Sensor – 3-Wire, Ø6 × 50mm, 1m

he PT1000 RTD Temperature Sensor is a high-precision platinum resistance temperature detector designed for accurate and stable temperature measurement in industrial and automation applications.

It provides reliable temperature sensing over a wide range from -50°C to +260°C, making it suitable for demanding industrial applications requiring continuous thermal monitoring.

The sensor features a durable Ø6 × 100 mm stainless steel probe, providing excellent corrosion resistance and long service life. Its waterproof construction makes it suitable for wet and demanding industrial environments.

The 3-wire configuration helps compensate for cable resistance and improves measurement reliability. A flexible 1-meter silicone cable provides good resistance to heat, oil and wear, making installation easier in industrial machinery and automation systems.

Specifications:

• Type: PT1000 RTD
• Sensing Element: Platinum Resistance
• Nominal Resistance: 1000 Ω at 0°C
• Connection: 3-Wire
• Temperature Range: -50°C to +260°C
• Accuracy Class: Class C
• Probe Diameter: Ø6 mm
• Probe Length: 100 mm
• Probe Material: Stainless Steel
• Cable Type: Silicone
• Cable Length: 1 m
• Construction: Waterproof
• Heat Resistance: Up to 260°C
• Application: Temperature Measurement & Control

Applications:

• Industrial machinery
• Industrial automation
• Filling and packaging machines
• Food processing equipment
• PLC control systems
• PID temperature controllers
• HVAC systems
• Heating systems
• Industrial process monitoring and control
