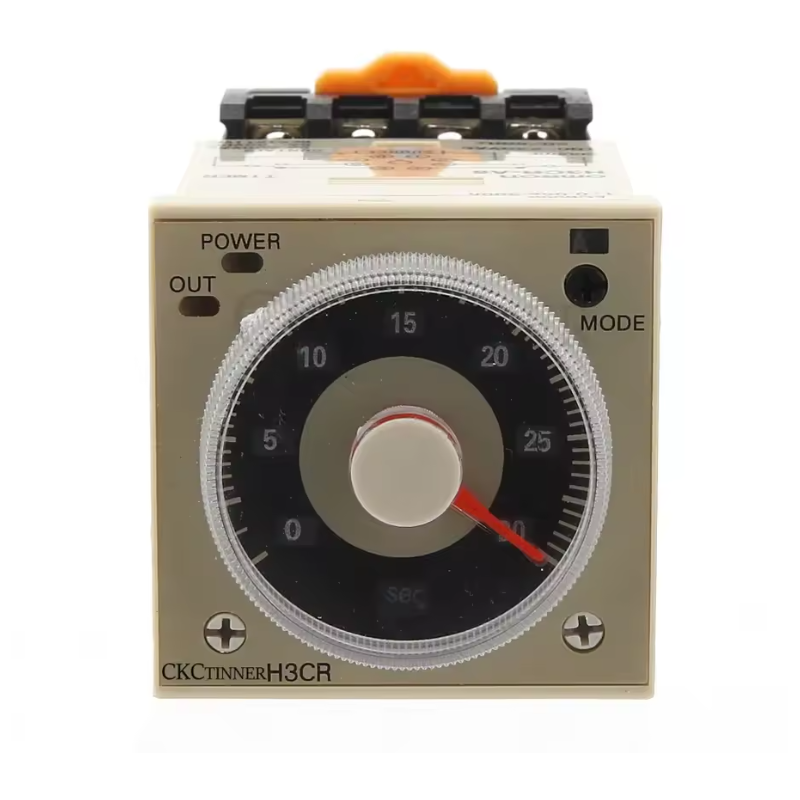

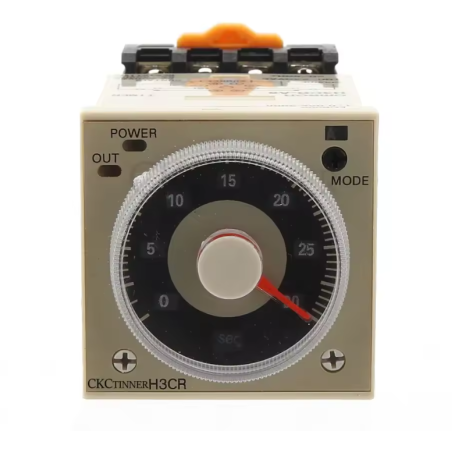

H3CR-A8 Electronic Time Relay – 24–220VAC/DC, 8PIN

H3CR-A8 Electronic Time Relay – 24–220VAC/DC, 8PIN

The H3CR-A8 Time Relay is a multifunction industrial timer designed for accurate time control in automation panels and industrial control systems. It supports a wide AC/DC power supply range, making it highly flexible for various applications.

Key Features:

• Model: H3CR-A8

• Type: Electronic Time Relay

• Power Supply: 24–220VAC/DC, 50/60Hz

• Time Range: 1.2 seconds – 300 hours

• Setting Method: Rotary knob

• Visual Indication: LED

• Pin Configuration: 8 PIN

• Output: Relay contact

• Contact Rating: 5A @ 250VAC / 5A @ 28VDC

• Power Consumption: ≤ 1.6W

Technical Parameters:

• Repeat Accuracy: ±0.3%, ±0.05 sec

• Setting Error: ±0.5%, ±0.05 sec

• Operating Temperature: -10°C to +50°C

• Operating Humidity: 35–95% RH (non-condensing)

Mounting & Construction:

• Mounting: Panel mount or DIN rail (with socket)

• Dimensions: 48 × 48 × 81.6 mm

• Compatible Socket: PF083A

• Mechanical Life: ≥ 1 × 10⁶ operations

• Electrical Life: ≥ 1 × 10⁵ operations

Typical Applications:

• Industrial automation panels

• Motor and pump control

• Ventilation systems

• Machinery automation

• Lighting and timing control

📦 Package Includes:
1 × H3CR-A8 Time Relay
