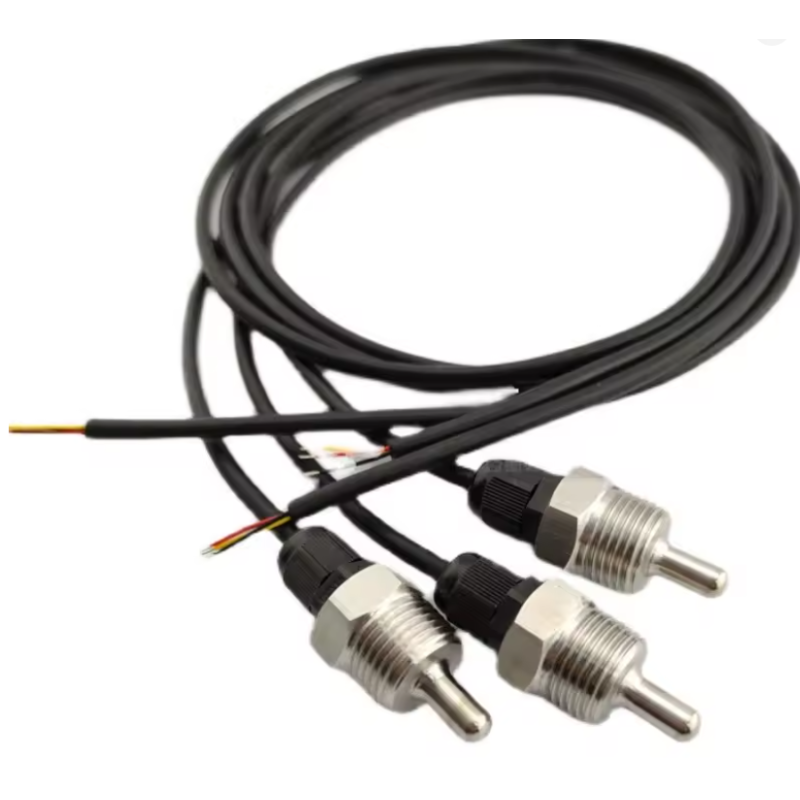

PT100 Temperature Sensor – Threaded RTD BSP G1/2"

PT100 Temperature Sensor – Threaded RTD BSP G1/2"

The PT100 RTD temperature sensor is designed for high-accuracy and stable temperature measurement in industrial applications. Featuring a SUS304 stainless steel probe and standard BSP G1/2" thread, this sensor is suitable for demanding industrial environments.

It uses a three-wire electrical system, which improves measurement accuracy by compensating for lead wire resistance. The sensor is ideal for use with PID temperature controllers, automation systems, and industrial control panels.

Technical Specifications:

• Sensor type: RTD PT100

• Electrical system: 3-wire

• Accuracy class: Class 2B

• Tolerance: F0.6

• Temperature range (probe): -50°C ~ +420°C

• Probe diameter: 8 mm

• Probe length: 30 / 50 / 100 / 150 / 200 mm

• Probe material: SUS304 stainless steel

• Thread: BSP 1/2" (G1/2")

Cable:

• Material: Flexible PVC insulated cable

• System: 3-wire

• Cable temperature range: -50°C ~ +125°C

• Cable length: 1 m

• Cable gland: M12 × 1.5

Package:

• 1 pc per pack

Typical applications:
Industrial heaters, packaging machines, food and dairy industry, HVAC systems, automation processes, and control panels.
