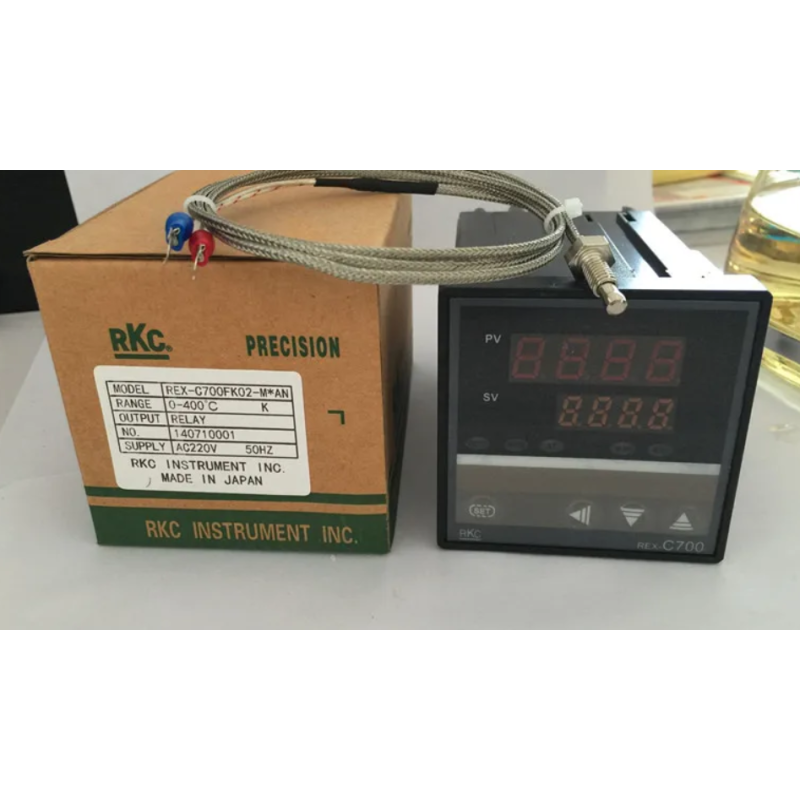

PID Digital Temperature Controller REX-C700 (0–400°C)

PID Digital Temperature Controller REX-C700 (0–400°C)

The REX-C700 PID digital temperature controller is a reliable industrial device designed for accurate and stable temperature control in various heating processes. This model supports a wide temperature range from 0 to 400°C, making it suitable for many industrial and technical applications.

The controller is supplied with a K-type thermocouple with M6 thread, ensuring fast response and stable temperature measurement. Thanks to the PID self-tuning function, the device automatically optimizes control parameters to maintain the desired temperature with high accuracy and minimal fluctuation.

Its standard 72 × 72 mm panel size allows easy installation in control cabinets and industrial machinery. The relay output makes it suitable for controlling heaters, contactors, and resistive loads.

Key Features:

• PID digital temperature controller

• Temperature range: 0 – 400°C

• Includes K-type thermocouple (M6)

• Self-tuning PID control

• Standard industrial panel mounting

• Suitable for heaters and thermal processes

Technical Specifications:

• Model: REX-C700 FK02-M*EN

• Power supply: 100–240 VAC, 50/60 Hz

• Input: K-type thermocouple

• Output: Relay

• Panel size: 72 × 72 mm

• Operating temperature range: 0 – 400°C

Typical applications:
Industrial machinery, electric heaters, packaging machines, food and dairy industry, automated thermal control systems.
